UHF Handheld ICOM IC-U86 – Durable Communication Solution


Product Enquiry

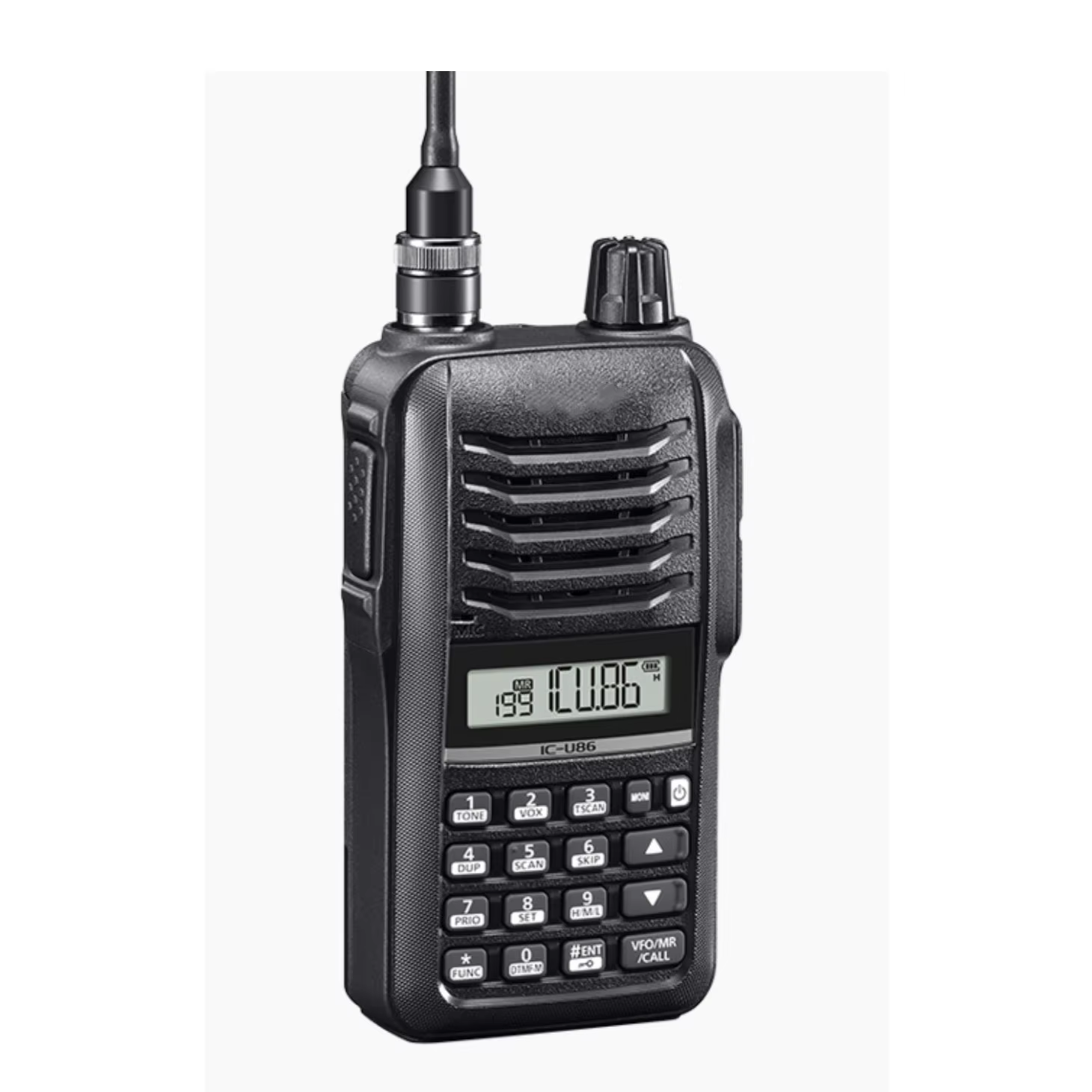

The ICOM IC-U86 is a high-performance UHF handheld transceiver designed for professionals who require reliable communication in demanding environments.

Compare
Add to wishlist
Categories: , Tags: , , , , , ,
Description

ICOM IC-U86 UHF Handheld Transceiver—High-Power, Rugged Communication Solution

The ICOM IC-U86 is a high-performance UHF handheld transceiver designed for professionals who require reliable communication in demanding environments. With its robust build, powerful audio output, and extended battery life, the IC-U86 ensures seamless communication for various applications, including maritime, industrial, and security operations.

Key Features:

  • High RF Output Power: Delivers up to 5.5 W of RF output power, ensuring clear and reliable communication over extended distances.

  • Robust Construction: Built to withstand harsh conditions, the IC-U86 complies with IP54 standards for dust and water resistance and meets MIL-STD 810G military standards for shock and vibration resistance.

  • Extended Battery Life: Equipped with a 2100mAh battery, the IC-U86 offers up to 19 hours of continuous operation, ensuring reliable performance throughout the workday.

  • Powerful Audio Output: Features a 1500mW speaker that provides loud and clear audio, even in noisy environments.

  • Wide Frequency Range: Operates within the 400–472 MHz frequency range, suitable for various communication needs.

  • Multiple Channel Capacity: Supports 207 channels, including 200 memory channels, 1 call channel, and 6 scan edges, allowing for efficient channel management.

  • Integrated VOX Function: Enables hands-free operation when paired with compatible accessories, enhancing user convenience.

  • CTCSS and DTCS Encoder/Decoder: Provides privacy and selective calling features, enhancing communication security.

  • Easy Programming: Allows for direct programming from the radio without the need for a PC, simplifying setup and configuration.

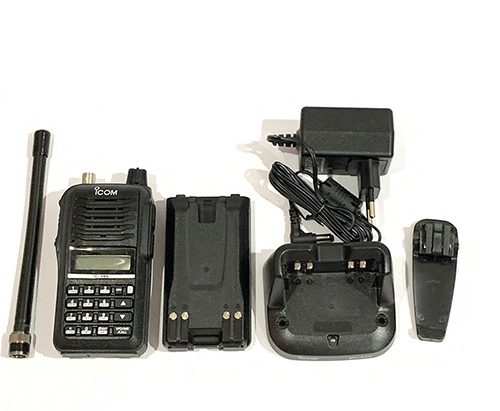

Included Accessories:

  • BP-298 Li-ion Battery Pack

  • BC-240 Desktop Charger

  • FA-B57U Antenna

  • MB-124 Belt Clip

  • BC-242 AC Adapter

  • Owner’s Manual

Additional information
Brand

ICOM
Technology

Analogue, Digital, License Free
Frequency Range

TX: 430–450 MHz, RX: 400–472 MHz
Type of Emission/Modulation

F2D, F3E (FM, FM-N)
Number of Channels

207 channels (200 memory channels, 1 call channel and 6 scan edges)
Antenna Impedance

50 Ω
Power Supply Requirement

7.5V DC
Operating temperature range

–20 ˚C to +60 ˚C, –4 °F to +140 °F
Frequency Stability

±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F)
Current drain

TX
(EX Hi/Hi/Mid/Low) EXP1: 1.6/1.5/1.0/0.5 A typ.
EXP2: 1.6/1.4/0.9/0.5 A typ.
RX
(Max. audio) 450 mA typ. (INT SP),
190 mA typ. (EXT SP, Single end)
450 mA typ. (EXT SP, BTL)
Dimensions (W×H×D) (Projections not included)

58.6 × 112 × 30.5 mm,
2.3 × 4.4 × 1.2 in
(with BP-298)
Weight (Approximate)

290 g, 10.2 oz
(with BP-298, FA-B57U)
Output power (EX Hi/Hi/Mid/Low)

5.5/4/2/0.5 W
Maximum frequency deviation

±5.0 kHz/±2.5 kHz (Wide/Narrow)
Spurious emissions

Less than –60 dB
External microphone connector

3-conductor 2.5 (d) mm (1/10")/2.2 kΩ
Analog Sensitivity

EXP1: –121 dBm typical EXP2: –123 dBm typical
Squelch sensitivity

EXP1: –123 dBm typical
EXP2: –125 dBm typical
Selectivity (Wide/Narrow)

70 dB typical/
68 dB typical
Intermodulation

65 dB typical
Audio Output Power

Internal SP 1500 mW typical (with 8 Ω load), External SP 450 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected)
External speaker connector

3-conductor 3.5(d)mm (1/8″)/8Ω
Optional Accessories

Optional Accessories

MICROPHONES

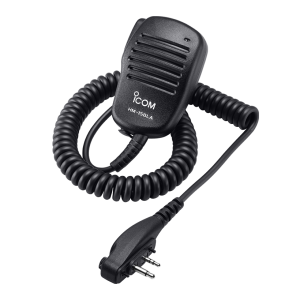

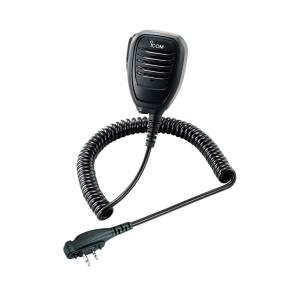

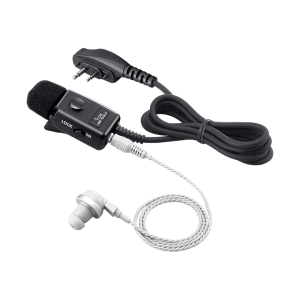

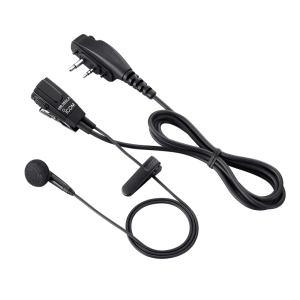

HM-153LA  Earphone Microphone                 HM-158LA  Speaker Microphone                HM-159LA  Speaker Microphone



HM-166LA  Earphone Microphone               HM-222HLWP  Speaker Microphone

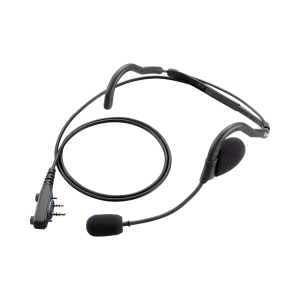

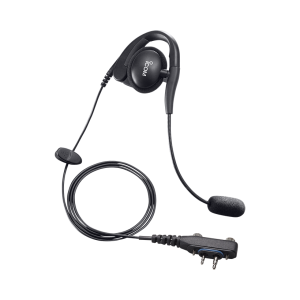

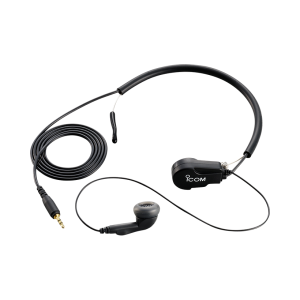

HEADSETS

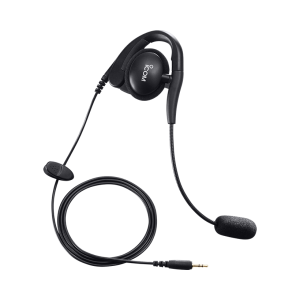

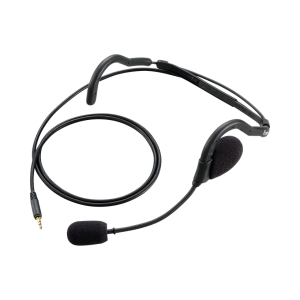

HS-94  Earhook Type Headset             HS-94LWP  Earhook Type Headset                HS-95LWP  Neck Arm Type Headset



HS-95  Neck Arm Type Headset                               HS-97  Headset With Throat Microphone



BATTERIES

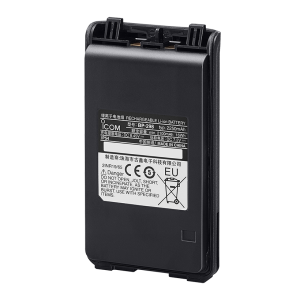

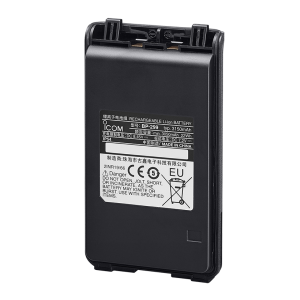

BP-264  NI-MH  Battery Pack                                                       BP-298  LI-ION Battery Pack

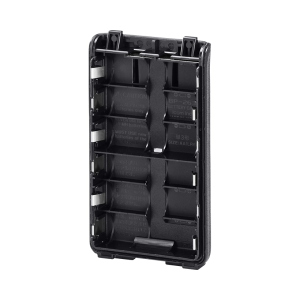

BP-299  LI-ION Battery Pack                                              BP-263   Battery Case



CHARGERS

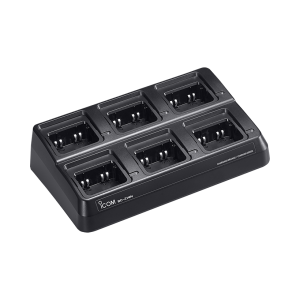

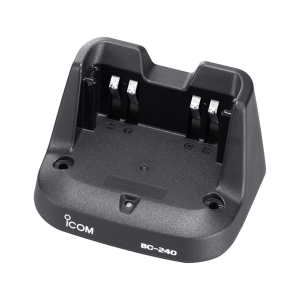

BC-214N  Multi-Charger                                 BC-192  Desktop Charger                                              BC-240  Desktop Charger



POWER SUPPLY CABLES

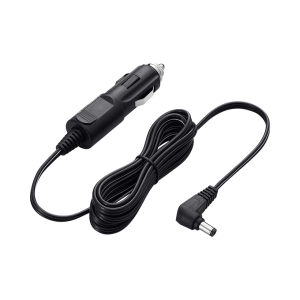

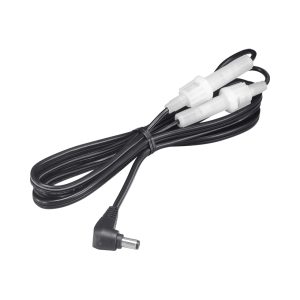

CP- 23L  Cigarette Lighter Cable                                                  OPC-515L  DC Power Cable

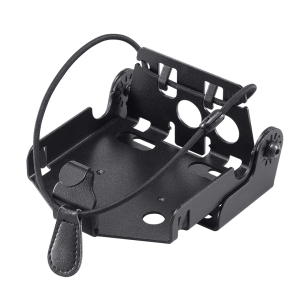

MOUNTING BRACKET

MB-130  Vehicle Charger Bracket

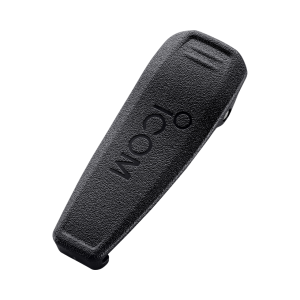

BELT CLIPS

MB-124  Belt Clip



ANTENNAS

FA-B45V   Flexible Antenna          FA-B57U  Flexible Antenna        FA-B57V  Flexible Antenna



SOFTWARE

CS-V86  Programming Software



PROGRAMMING/DATA CABLE



OPC-478UC  Programming Cable                  OPC-478UD  Programming Cabl              OPC-478UC-1  Programming Cable



CABLES

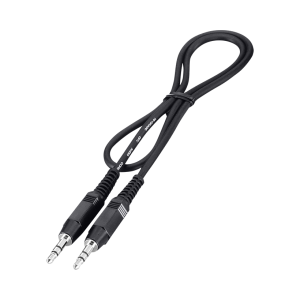

OPC-474  Cloning Cable



PLUG ADAPTER CABLE

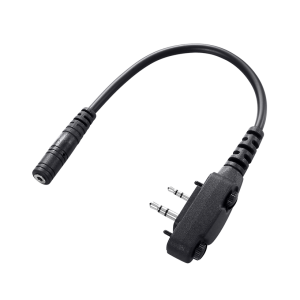

OPC-2004LA  Plug Adapter Cable



PTT SWITCH CABLE

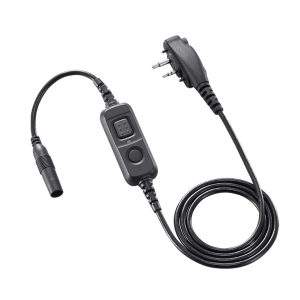

VS-4LA  PTT Switch Cable

Download Browser

Download Browser

Download

License

License

 Walkie-Talkie License Guidelines in India (Updated 2025)

In India, the use of walkie-talkies (wireless communication equipment) is regulated by the Wireless Planning and Coordination (WPC) Wing of the Ministry of Communications. To operate walkie-talkies legally, users must comply with specific licensing norms and frequency allocation rules set by the Government of India.

 Who Needs a License?

A license is required for:

  • Businesses (e.g., hotels, event management, construction, security services)

  • Government and emergency services

  • Private organizations using wireless sets for operational communication

 Who Doesn’t Need a License?

No license is required for license-free walkie-talkies that operate in specific frequency bands:

  • 446.0–446.2 MHz (PMR frequency) under low power (0.5 W ERP)

  • These are meant for short-range, personal, or business use

  • Devices must be type-approved by WPC

 Types of Licenses Issued by WPC

  1. Non-Network License (NL):

    • For short-range wireless communication within premises

    • Common for event organizers, hotels, etc.

  2. Network License:

    • For organizations requiring a private network over a wider area

  3. Amateur Wireless Telegraph Station License:

    • For ham radio operators (not applicable for business walkie-talkies)

 How to Apply for a Walkie-Talkie License

  1. Application Portal:

  2. Documents Required:

    • Company registration certificate

    • ID & address proof of the authorized person

    • Technical details of the equipment

    • Frequency band and area of operation

  3. Fees:

    • Varies based on the type of license, number of devices, and usage area

    • Includes processing fees and annual spectrum charges

  4. Approval Time:

    • Typically between 15-18 weeks, depending on application completeness

 Penalties for Unlicensed Use

Using non-approved or unlicensed walkie-talkies can result in:

  • Seizure of equipment

  • Fines and penalties under the Indian Telegraph Act

  • Legal action by enforcement agencies

 Quick Tips

  • Always buy WPC-approved walkie-talkies

  • Use license-free models for basic use (within permitted power/frequency)

  • For business or long-range use, obtain the appropriate license

  • Keep your license renewed and records up to date

For licensing assistance or compliant walkie-talkie products, feel free to contact our support team.
