| Specification | Details |
|---|---|
| GENERAL | |
| Frequency Range | VHF: 136-174 MHz |
| Channel Capacity | 512 channels / 128 zones |
| Output Power | 50 W / 25 W / 5 W (high/mid/low) |
| Audio Output | 3 W (internal speaker) |
| Display | Large color LCD (high-resolution) |
| Dimensions (W×H×D) | 160 × 52 × 160 mm |
| Weight | 1.4–1.6 kg (with bracket) |
| Protection | IP54/55, MIL-STD-810 C/D/E/F/G |
| Operating Temperature | -30°C to +60°C |
| Frequency Stability | ±0.5 ppm |
| DIGITAL FEATURES | NXDN® (conventional/trunking), DMR Tier II (conventional/trunking), AMBE+2™ vocoder, 6.25/12.5 kHz channels, GPS, Bluetooth, AES/DES encryption, OTAP, text messaging, site roaming, multi-site IP networks |
| ANALOG FEATURES | QT/DQT, FleetSync®/II, MDC-1200, DTMF |
| OTHER | Intelligent audio, transmit interrupt, emergency call, lone worker/man-down, VOX, priority scan, noise suppression, remote management, programmable buttons, tri-color LED indicators, PC programming (KPG-141D) |

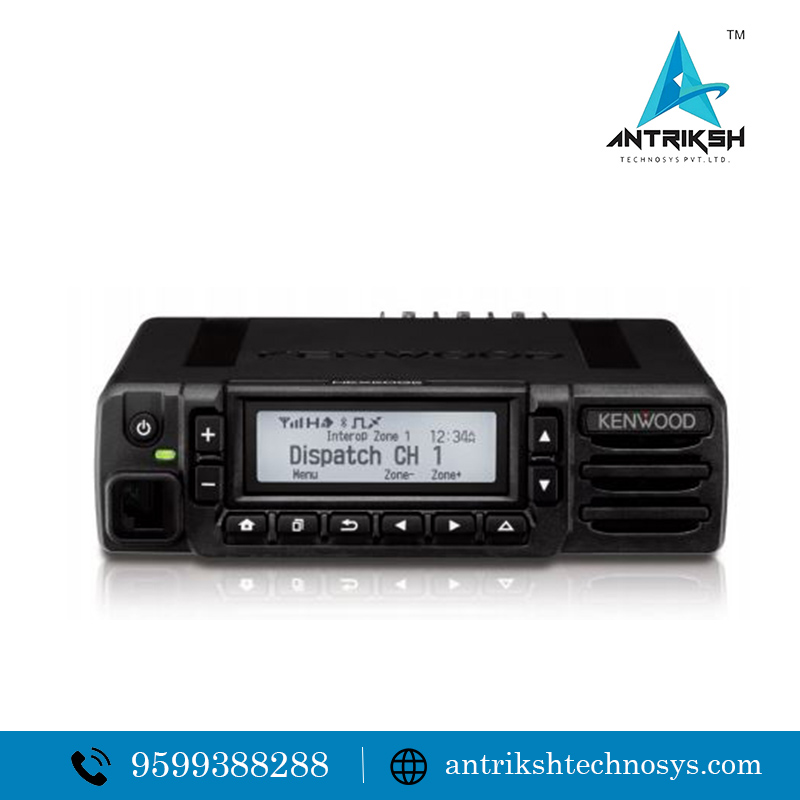

Kenwood Base station NX-3720 (User License and DPL Required)
₹39,200.00
The Kenwood NX-3720 is a compact, high-performance NEXEDGE® VHF mobile radio supporting NXDN® digital (conventional & trunking), DMR Tier II, and analog FM modes in one unit. It delivers 50 W output power, clear audio with noise suppression, large color LCD display, intuitive interface, IP54/55 dust/water protection, and MIL-STD-810 ruggedness. Features include built-in GPS, Bluetooth, text messaging, emergency alerts, lone worker/man-down, encryption (DES/AES), over-the-air programming (OTAP), multi-site roaming, and large channel capacity. Ideal for vehicle-mounted use in public safety, utilities, transportation, construction, security, and industrial fleets needing multi-protocol digital performance.
Description
Additional information
| Bluetooth | Yes |
|---|---|
| Brand | Kenwood |
| Channel Announcement | Yes |
| Audio Output Power | 1.5W |
| Warranty | 1 Year |
| IP Rating | IP54/55 |
| Channels Capacity | Upto 1000 Channels with Options |
| Channels Spacing | Analog 25/12.5 KHz, 12.5 KHz (Digital), 25 KHz (Digital) |
| Frequency Band | 136-174 Mhz, 400-470 Mhz |
| RF Output Power | 25/50W |
| Colour | Black |
| GPS | Yes |
| Technology | Digital |
