| Specification | Details |
|---|---|
| GENERAL | |
| Frequency Range | UHF: 403-470 MHz (or 450-527 MHz variants) VHF: 136-174 MHz |
| Channel Capacity | 1000 channels / 256 zones |
| Output Power | 1-40 W |
| Audio Output | 3 W |
| Display | Large color display (high-resolution) |
| Dimensions (W×H×D) | Approx. 175 × 57 × 160 mm |
| Weight | Approx. 1.8–2.2 kg |
| Protection | IP67, MIL-STD-810 C/D/E/F/G |
| Intrinsically Safe Cert | ATEX/IECEx: II 2G Ex ib IIC T4 Gb, II 2D Ex ib IIIC T130°C Db, I M2 Ex ib I Mb FM/CSA: Class I Div 1 Groups C,D; Class II Div 1 Groups E,F,G; Class III Div 1 |
| DIGITAL FEATURES | MOTOTRBO Tier II (conventional/trunking), text messaging, GPS (optional), Bluetooth, AES/DES encryption, OTAP, site roaming, Capacity Plus, Connect Plus, IP Site Connect |
| ANALOG FEATURES | QT/DQT, 5-Tone, MDC-1200, DTMF |
| OTHER | Intelligent Audio, Transmit Interrupt, emergency call, man-down/lone worker, VOX, priority scan, noise suppression, remote management (SNMP), front-firing speaker, programmable buttons, tri-color LED indicators |

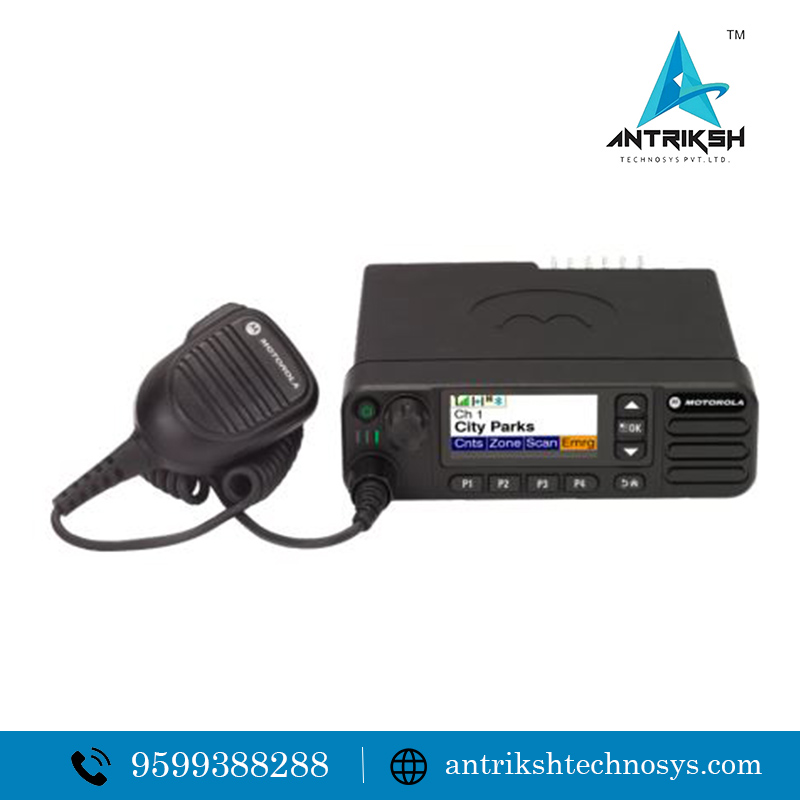

Motorola Base station XIRM8660i (User License and DPL Required)
₹36,000.00
The Motorola XiR M8660i is a rugged, vehicle-mounted intrinsically safe (IS) mobile radio from the MOTOTRBO series, designed for safe and reliable communication in explosive/hazardous environments (oil & gas, mining, petrochemicals, refineries, chemical plants). It supports MOTOTRBO digital (Tier II conventional/trunking) and analog modes with 1-40 W adjustable power (safe low power for IS), IP67 waterproof/dustproof rating, full MIL-STD-810 ruggedness, and large color display with intuitive interface. Features include Intelligent Audio, Transmit Interrupt, GPS (optional), Bluetooth, text messaging, emergency alerts, man-down/lone worker, AES/DES encryption, over-the-air programming, and multi-site roaming. Certified for highest ATEX/IECEx/FM/CSA ratings (Zone 0/1/2 gas & dust, mining). Ideal for vehicle use in high-risk industries needing safety certification and digital performance.
Description
Additional information
| Bluetooth | Optional |
|---|---|
| Brand | Motorola |
| Channel Announcement | Yes |
| Audio Output Power | 5W |
| Warranty | 1 Year |
| IP Rating | IP54 |
| Channels Capacity | 1000 |
| Channels Spacing | 12.5 KHz, 25 KHz |
| Frequency Band | 136-174 Mhz, 350-390 Mhz, 400-520 Mhz, 800 MHz |
| RF Output Power | 1-25W |
| Colour | Black |
| Technology | Digital |
